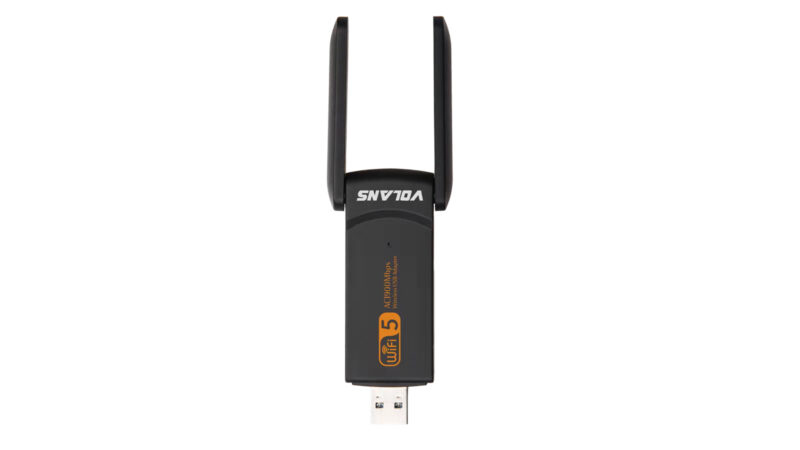

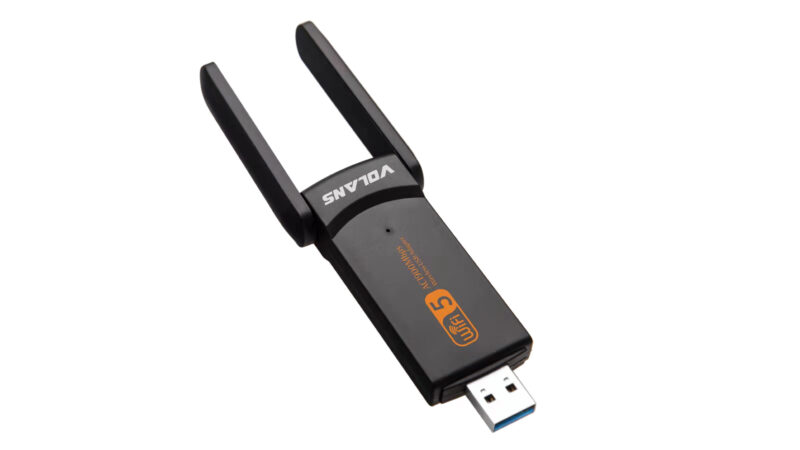

VOLANS VL-UW190S AC1900 High Gain Wireless Dual Band USB Adapter

  • Ultimate Wi-Fi Speed– AC1900 (600Mpbs on 2.4GHz band or 1300Mbps on 5GHz band) wireless speed with the next generation Wi-Fi – 802.11ac
  • Dual Band Wireless– 2.4GHz and 5GHz band for flexible connectivity
  • Ultimate Range – High gain antennas ensure superior range and stability
  • Beamforming Technology – Delivers a more targeted and highly efficient wireless connections
  • Super Speed USB 3.0 Port – Up to 10x faster than USB 2.0
  • Flexible Deployment – Come with a USB 3.0 extension cable for flexible deployment
  • Backward Compatibility – With support for 802.11 a/b/g/n standards
SKU: VL-UW190S Category:

Specification

HARDWARE FEATURES
Interface USB 3.0
Chipset Realtek 8814AU
Antenna Type Dual band 5DBI Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,IEEE 802.11n,IEEE 802.11g, IEEE 802.11b
Frequency 2.412~2484GHz/5.15~5.825GHz
Signal Rate 5GHz:
11ac: Up to 1300Mbps(dynamic)
11n: Up to 450Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz:
11n: Up to 600Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter VL-UW190S
Resource CD
Quick Installation Guide
USB Cradle
System Requirements Windows 7/ 8/ 8.1/ 10/ 11
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty 1-Year Warranty

Download

32bit/64bit Windows7/8.1/10/11 WLAN USB driver (Install Package)
