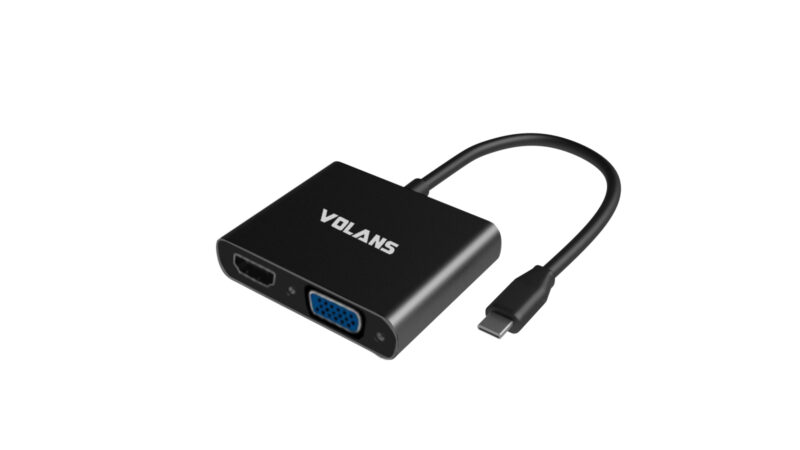

VOLANS VL-UCVH3C Aluminium USB-C Multiport Adapter – Power Delivery – 4K HDMI – VGA – USB3.0

  • Aluminium, travel-friendly design
  • Supports 4K Ultra HD @30Hz (HDMI) or 1080P FHD @60Hz (VGA)
  • Dual monitors (same picture)  from a single USB-C output
  • Charges your laptop with up to 60W Power
  • Works with older USB-A devices

* It supports either a single monitor with up to 4K resolution using HDMI only or support two monitors with up to 1080p resolution simultaneously when the HDMI and VGA outputs are used together.

SKU: VL-UCVH3C Category:

Specification

Warranty Information
Warranty 1 Year
Hardware
4K Support Yes
Bus Type USB-C
Chipset ID FL7102+ITE6564
Displays Supported 2
Fast-Charge Port(s) 1
Industry Standards USB 3.0 – Backward compatible with USB 2.0 and 1.1
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
Maximum Digital Resolutions 4K@30Hz (HDMI)
1080P@60Hz (VGA)
Type and Rate USB 3.0 – 5 Gbit/s
UASP Support Yes
Connector(s)
Connector Type(s) 1 – USB Type-C (24 pin) USB 3.0 Male
1 – HDMI (19 pin) Female
1 – VGA Female
1 – USB Type-A (9 pin) USB 3.0 Female
1 – USB Type-C (24 pin) USB 3.0 Female — Power Delivery Only, No Data Transfer
Special Notes / Requirements
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.
The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
OS Support Windows7/8/10, Google Chrome OS, Mac OS X Yosemite, Mac OS X El Capitan,Mac OS sierra or above
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
Power
Power Delivery 60W
Power Source USB-Powered
Environmental
Humidity 0~90% RH (Non-condensing)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Aluminium
What’s in the Box
Included in Package 1 – VL-UCVH3C
1- User Manual
