Aluminium USB-C to RJ45 Gigabit Ethernet Adapter (RJ45-C)

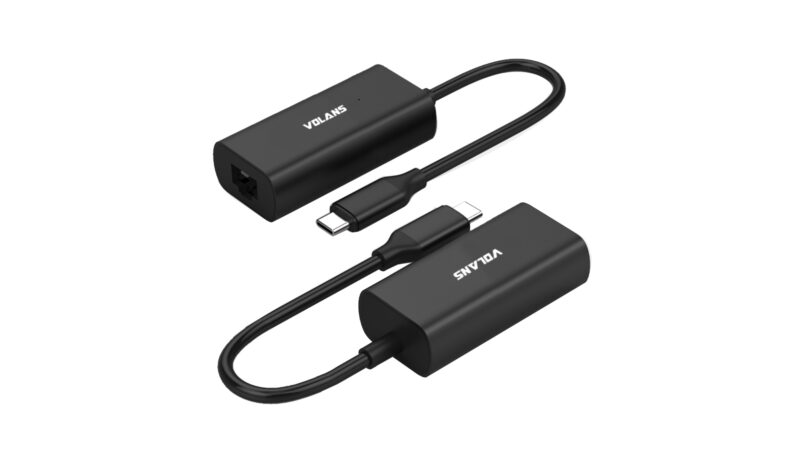

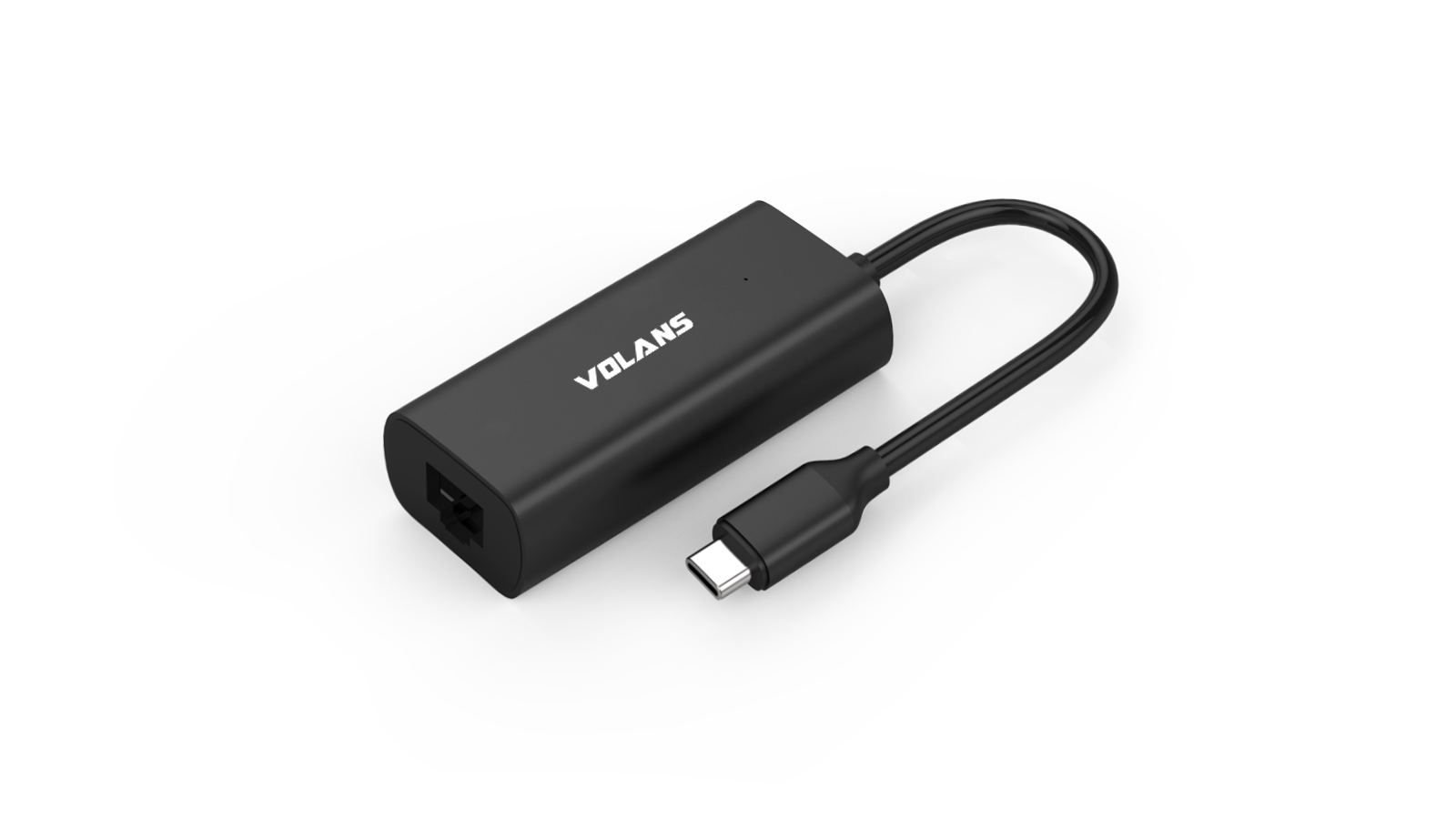

Volans Aluminium USB-C to RJ45 Gigabit Ethernet Adapter

The Volans aluminium USB-C to Gigabit Ethernet Adapter (RJ45-C) adds a Gigabit Ethernet port to any USB 3.0/USB 2.0 enabled Ultrabook/Laptop/Desktop via Type-C port. Ideal for Offices, Conference & Hotel rooms with a wired internet connection. This small and compact adapter connects to a USB-C port on your computer and provides an RJ45 port for connection to a wired network at data transfer rates of up to 1000M. The adapter is also backward compatible with USB 2.0 ports.

SKU: VL-RJ45-C Category:

Features

Sleek design with easy portability

Engineered with a high-quality aluminum housing in a black finish, the network adapter is the perfect companion for your MacBook, and any laptop or Chromebook™ with a similar color finish. Compact and portable, this USB network adapter is the ideal laptop accessory. You don’t have to carry a power adapter with you to use it because it’s powered directly from the host USB port.

Native driver support makes installation easy

Get up and running quickly. Simply plug the adapter into the USB-C port on your laptop and connect to your network. The adapter chipset provides native driver support in Chrome OS™, Mac OS 10.10, Windows® 8.1.

Powerful Gigabit network connections

The USB Type-C™ network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.0, also known as USB 3.1 Gen 1 (5 Gbps). You can access very large files over the network at Gigabit speeds.

Trouble-free connections through USB-Type-C

The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug so you can connect to your devices with either side facing up. You can insert the cable the right way every time – without frustration or the risk of port damage.

Specification

Warranty Information
Warranty 1 Year
Hardware
Bus Type USB 3.1 Gen 1
Chipset ID Realtek RTL8153
Industry Standards IEEE 802.3, 802.3u and 802.3ab
Interface RJ45 (Gigabit Ethernet)
Ports 1
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Cable Length 0.6 in [1.5 cm]
Maximum Data Transfer Rate 5Gbps
Type and Rate USB 3.0 – 5 Gbit/s
Connector(s)
Connector Type(s) 1 – USB Type-C (24 pin) USB 3.0 Male
External Ports 1 – RJ-45 Female
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Mac OS X® 10.7 to 10.12 VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available USB Type-C port
Power
Power Source USB-Powered
Environmental
Humidity 20% ~ 90% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -55°C to 125°C (-67°F to 257°F)
Physical Characteristics
Color Black
Form Factor Attached Cable
What’s in the Box
Included in Package 1 – VL-RJ45-C

Download

Windows XP Driver
Windows 7 Driver
Windows 8.x Driver
Windows 10 Driver
Mac Driver.
