Aluminium USB3.0 to RJ45 Gigabit Ethernet Adapter (RJ45)

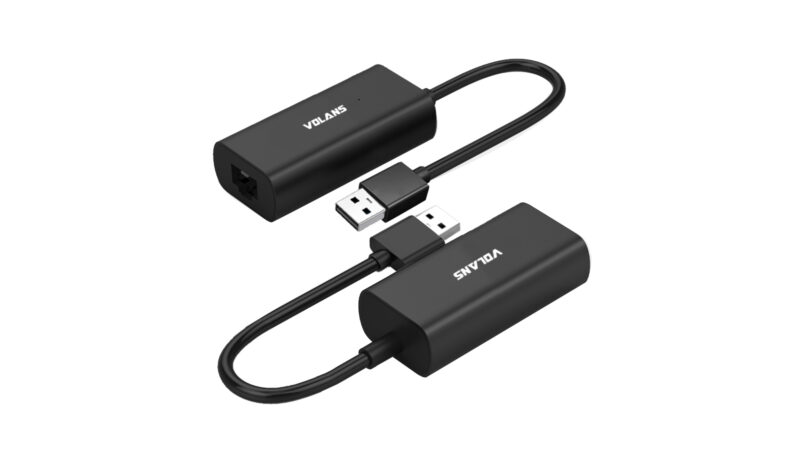

Volans Aluminium USB3.0 to RJ45 Gigabit Ethernet Adapter

The Volans aluminium USB 3.0 to Gigabit Ethernet Adapter (RJ45) adds a Gigabit Ethernet port to any USB 3.0/USB 2.0 enabled Ultrabook/Laptop/Desktop. Ideal for Offices, Conference & Hotel rooms with a wired internet connection. This small and compact adapter connects to a USB port on your computer and provides an RJ-45 port for connection to a wired network at data transfer rates of up to 1Gbps. The adapter is also backward compatible with USB 2.0 ports.

SKU: VL-RJ45 Category:

Features

  • One up-stream support super speed
  • Three down-stream ports support super speed, high speed, full speed, and low speed traffic
  • IEEE 802.3.3.802.3U and 802.3ab compatible
  • Support IPv4/IPv6 packet checksum offload engine(COE) to reduce CPU loading
  • Support full duplex operation with IEEE802.3x flow control
  • Support Jumbo frame
  • Support remote wakeup via link-change, magic packet, Microsoft wakeup frame

Specification

Warranty Information
Warranty 1 Year
Hardware
Bus Type USB 3.0
Chipset ID REALTECK- RTL8153
Industry Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Interface RJ45 (Gigabit Ethernet)
Ports 1
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 4K max.
Max Distance 100 m / 330 ft
Type and Rate USB 3.0 – 5 Gbit/s
Connector(s)
Connector Type(s) 1 – RJ-45 Female
1 – USB Type-A (9 pin) USB 3.0 Male
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows® Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12 VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available USB port
Indicators
LED Indicators 1 – Activity (Yellow)
1 – Link (Green)
Environmental
Humidity < 80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color Black
Enclosure Type Aluminium
Form Factor Attached Cable
What’s in the Box
Included in Package 1 – USB 3.0 Gigabit Adapter
1 – Driver CD
1 – Instruction Manual

Download

Windows XP Driver
Windows 7 Driver
Windows 8.x Driver
Windows 10 Driver
Mac Driver.
