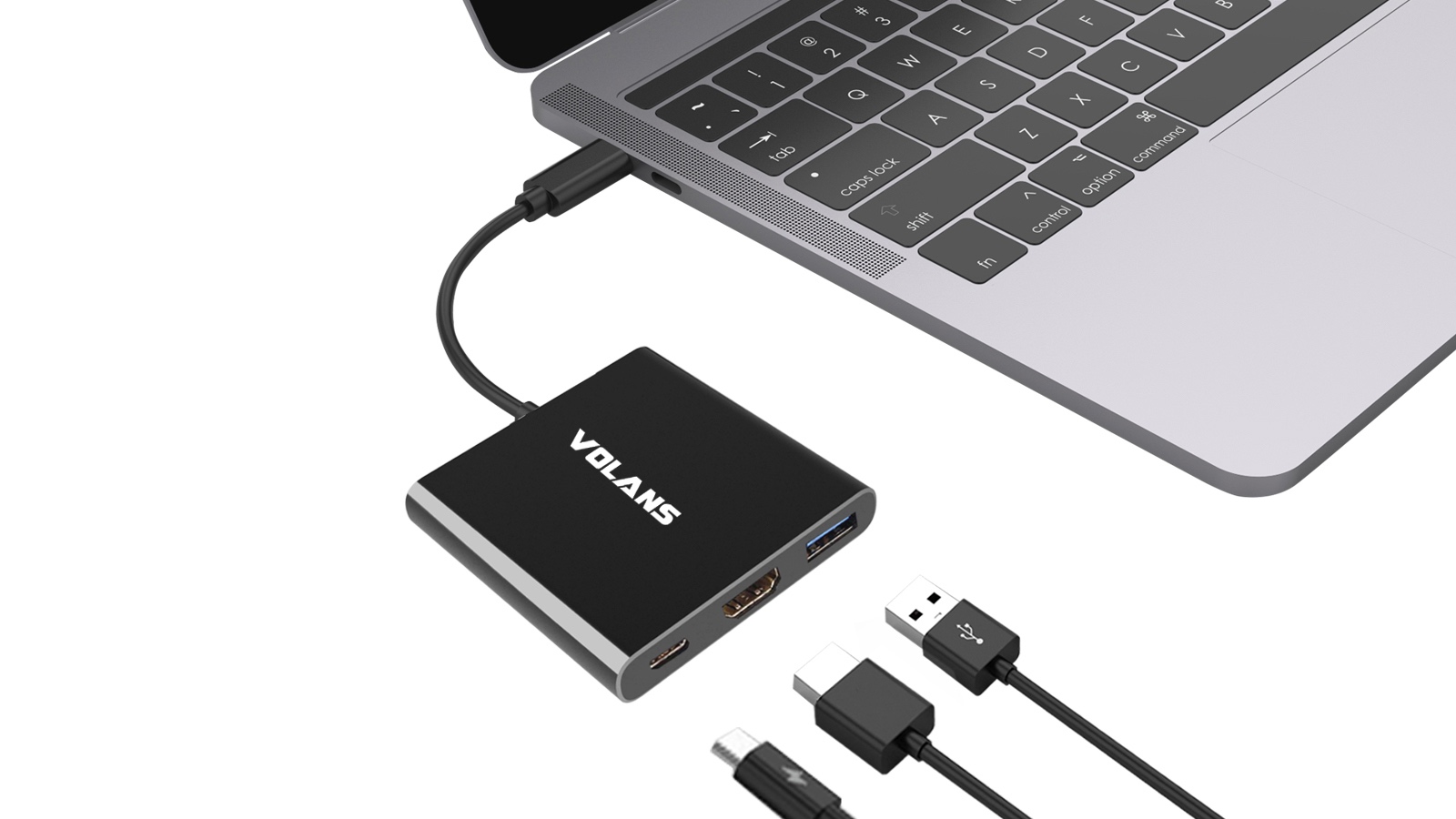

VOLANS VL-UCH3C2 Aluminium 3-in-1 USB-C Hub with 100W PD

VOLANS VL-UCH3C2 Aluminium 3-in-1 USB-C Hub with 100W PD - Image 3

Aluminium, travel-friendly design
Supports 4K Ultra HD @60Hz (DP1.4)
Charges your laptop with up to 100W
Works with older USB-A devices

SKU: VL-UCH3C2 Category: USB Docking

Specification
Review

Specification

Warranty Information
Warranty	1 Year
Hardware
4K Support	Yes
Bus Type	USB-C
Chipset ID	VIA – VL102 (PD) VIA – VL817 (USB3.0) Parade – PS186 (HDMI)
Displays Supported	1
Fast-Charge Port(s)	1
Industry Standards	USB 3.0 – Backward compatible with USB 2.0 and 1.1
Performance
Maximum Data Transfer Rate	5 Gbps (USB 3.0)
Maximum Digital Resolutions	4K@60Hz (Require DP1.4)
Type and Rate	USB 3.0 – 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 – USB Type-C (24 pin) USB 3.0 Male
	1 – HDMI (19 pin) Female
	1 – USB Type-A (9 pin) USB 3.0 Female
	1 – USB Type-C (24 pin) USB 3.0 Female
Special Notes / Requirements
Note	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode).
	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
Power
Power Delivery	100W
Power Source	USB-Powered
Environmental
Humidity	0~90% RH (Non-condensing)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Aluminium
What’s in the Box
Included in Package	1 – VL-UCH3C2 1- User Manual
